Voltage in an Open Circuit

1. What's the Deal with Voltage?

Okay, let's tackle this voltage in an open circuit mystery! Imagine you have a battery. You're all set to power up your favourite gizmo, right? But then you realize, you haven't actually connected anything to the battery terminals. It's just sitting there, all alone and unburdened. The question is, even though nothing's flowing, is there still something going on electrically? The answer is a resounding YES! This 'something' is voltage.

Think of voltage as electrical potential energy. It's the "push" or the "pressure" that's waiting to make electrons move. Even if there's no pathway for those electrons to travel, the potential difference, the yearning to move from one terminal of the battery to the other, is still present. It's like a coiled spring, ready to unleash its energy, even when it's not actively doing anything.

So, in an open circuit, while there's no current flowing (no electrons are actually moving), the voltage is still there, patiently waiting for a circuit to complete so it can finally get those electrons moving and do some work. It's the promise of electrical action, even if the action isn't happening yet. Kind of like waiting for your pizza to arrive — the potential for cheesy goodness is definitely there!

To make it clearer, consider a simple analogy: a water tank perched high above the ground. The water represents electrons, and the height of the tank represents the voltage. Even if there's no pipe connected to the tank (an open circuit), the water still has potential energy due to its height. If you were to suddenly connect a pipe, the water would rush out under pressure. Voltage in an open circuit is similar; it's the potential energy waiting to be unleashed.

Open Closed Circuit

Why is Voltage Present Even When There's No Circuit?

2. Delving Deeper

To truly understand why voltage exists in an open circuit, we need to peek under the hood, electrically speaking. It all boils down to charge separation. Inside a voltage source, like a battery or a generator, there's a mechanism that separates positive and negative charges. In a battery, this is achieved through chemical reactions that move electrons to one terminal (making it negative) and remove electrons from the other (making it positive).

This separation of charge creates an electrical field between the terminals. And that electrical field, my friend, is what we measure as voltage. It's the force that will act on any electron that happens to find itself between the terminals, urging it to move towards the positive side. So, as long as that charge separation is maintained, the voltage will be there, even if no electrons are actually making the journey.

Think of it like this: imagine two magnets, one with a north pole and one with a south pole. Even if they're not touching, there's still a magnetic field between them. If you were to place a piece of iron within that field, it would experience a force pulling it towards one of the magnets. Voltage is similar; it's the electrical field created by the separated charges that exerts a force on any charged particle.

This also explains why batteries eventually "die." The chemical reactions that separate the charges eventually run their course, and the charge separation diminishes. As the charge separation decreases, the voltage also decreases, until it reaches a point where it can no longer effectively push electrons through a circuit. No more charge separation, no more voltage!

Stormcosmic Blog

Measuring Voltage in an Open Circuit

3. The Voltmeter's Role

So, how do we confirm that this voltage is actually there in an open circuit? That's where our trusty voltmeter comes in. A voltmeter is a device specifically designed to measure the potential difference, or voltage, between two points. The key here is that a good voltmeter draws very, very little current. Why is this important? Because we want to measure the voltage without significantly disturbing the circuit (or lack thereof!).

When you connect a voltmeter across the terminals of an open circuit, it essentially provides a tiny, high-resistance pathway for electrons to flow. However, because the resistance is so high, the amount of current that flows is negligible. The voltmeter then measures the potential difference required to push that minuscule current through its internal resistance, giving you a reading of the voltage.

It's a bit like using a very sensitive scale to weigh a feather. You want a scale that's so precise that the weight of the scale itself doesn't significantly affect the reading. A good voltmeter is like that scale; it's so sensitive and has such a high resistance that it can measure the voltage in an open circuit without significantly altering the conditions.

However, be aware that using a low-quality voltmeter with a low input impedance can actually load the circuit down, causing the voltage reading to be lower than the actual open-circuit voltage. Always use a voltmeter with a high input impedance for accurate open-circuit voltage measurements. This is especially crucial when dealing with sensitive circuits or high-impedance voltage sources.

Voltage Across Open Circuit Resistors TAFE NSW YouTube

Real-World Implications

4. Beyond Theory

Okay, so we know voltage can exist in an open circuit. But why should we care? Well, understanding this concept has a lot of practical implications in electronics and electrical engineering. For instance, it's crucial for troubleshooting circuits. If you're trying to diagnose a problem, you might measure the voltage at various points in the circuit. If you find voltage where you expect it to be, even in an open section, it can tell you that the voltage source is working correctly and that the problem lies elsewhere, perhaps with a broken wire or a faulty component.

It also plays a vital role in safety. Imagine you're working on an electrical panel and you disconnect a circuit breaker. Even though the circuit is now open, there might still be voltage present on the wires. Knowing this allows you to take the necessary precautions to avoid electrical shock. Always assume there's voltage present until you've verified it with a voltmeter and taken appropriate safety measures!

In designing electronic circuits, understanding open-circuit voltage is critical for selecting components that can handle the maximum voltage that might be present. For instance, capacitors have a voltage rating, and you need to ensure that the voltage in your circuit, even in an open-circuit condition, doesn't exceed that rating. Otherwise, you risk damaging the capacitor, which could lead to circuit failure.

Furthermore, open-circuit voltage measurements are used in testing solar panels. The open-circuit voltage of a solar panel is one of the key parameters used to characterize its performance. It tells you the maximum voltage the panel can produce under ideal conditions when no current is flowing. This information is essential for designing solar power systems and ensuring they operate efficiently.

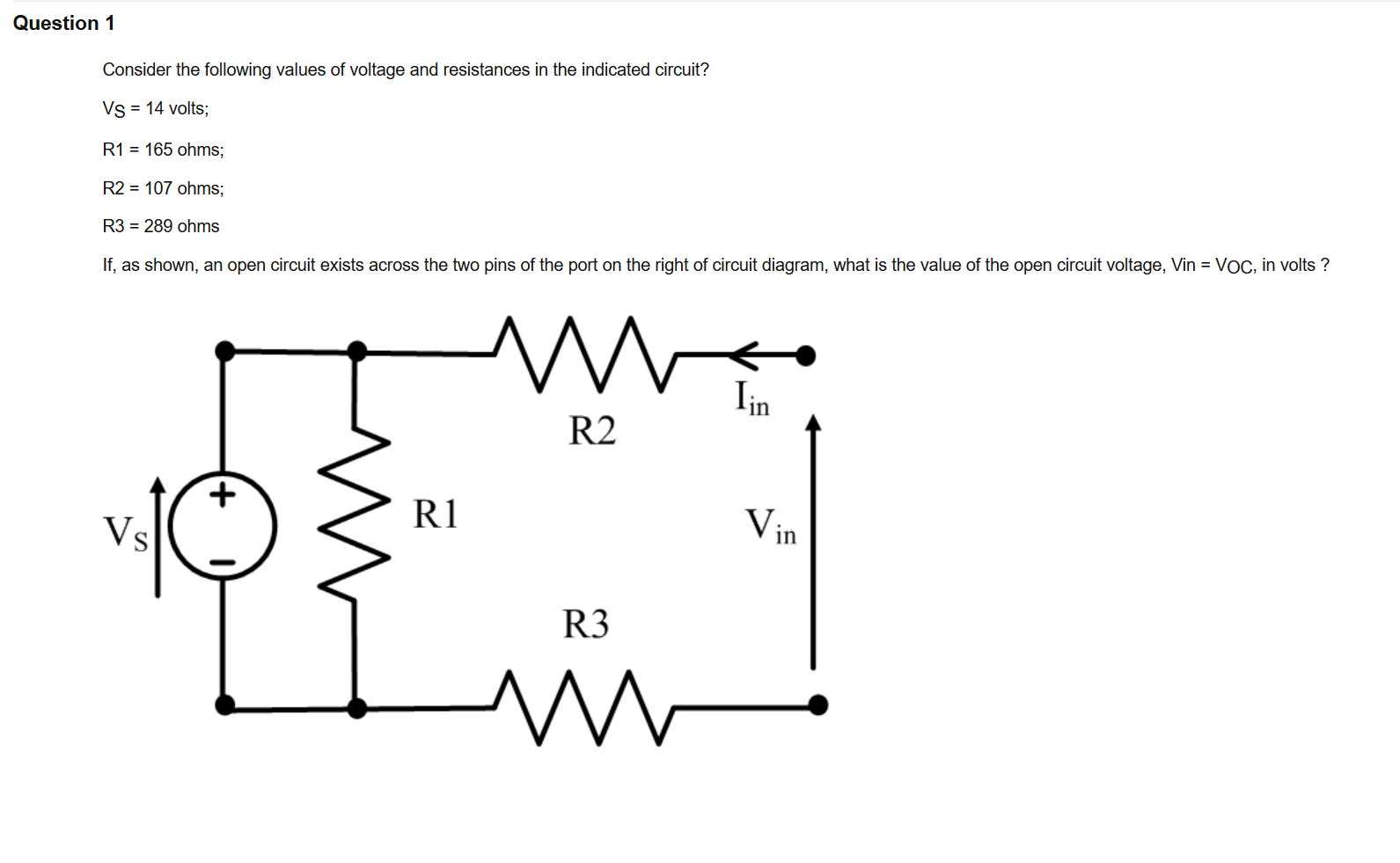

Solved Consider The Following Values Of Voltage And

Voltage, Open Circuits, and Safety First!

5. A Word to the Wise (and Cautious)

Working with electricity can be dangerous if you're not careful. So, let's reiterate the safety aspect. Just because a circuit is open doesn't mean it's safe. Voltage can still be lurking, waiting for an opportunity to shock you. Always treat any electrical circuit with respect and assume there's voltage present until you've confirmed otherwise with a reliable voltmeter.

Before working on any electrical equipment, always disconnect the power source. Use appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses. And if you're not comfortable working with electricity, don't hesitate to call a qualified electrician. It's always better to be safe than sorry when it comes to electricity. A little knowledge and a healthy dose of caution can go a long way in preventing accidents.

Remember, electricity is like a powerful force, and like any powerful force, it needs to be treated with respect. Understanding concepts like voltage in an open circuit can help you stay safe and avoid potentially dangerous situations. So, keep learning, keep asking questions, and always prioritize safety!

Think of electricity as a mischievous gremlin. You might not see it, but it's always there, potentially causing trouble if you're not careful. Treat it with respect, follow the safety rules, and you'll be fine. Ignore it, and you might just get a shocking surprise!

Open Circuit Definition, Diagram & Theory ElectricalWorkbook

FAQs

6. Your Questions Answered

Here are some frequently asked questions to further clarify the concept of voltage in an open circuit:

7. Q

A: No, there isn't any power being consumed. Power is the product of voltage and current (P = V x I). If the current (I) is zero, then the power (P) is also zero, even if there's voltage (V) present. It's like having a car engine running (voltage), but the car isn't moving (no current). There's potential energy, but no work is being done.

8. Q

A: Yes, absolutely. An open circuit can certainly have zero voltage. This happens when there's no potential difference between the two points in the circuit. For example, if you have a wire that's been cut, and neither end is connected to a voltage source, then there's no voltage between the two ends of the wire. It's essentially a dead end, electrically speaking.

9. Q

A: A high impedance voltmeter is crucial because it minimizes the current drawn from the circuit being measured. A low impedance voltmeter can act like a load, drawing a significant amount of current and altering the voltage you're trying to measure. This is especially important in high-impedance circuits or open circuits where even a small current draw can significantly affect the voltage reading. Using a high impedance voltmeter ensures a more accurate measurement that reflects the true open-circuit voltage.
