Decoding VRM in PDN
1. Unveiling the Mystery

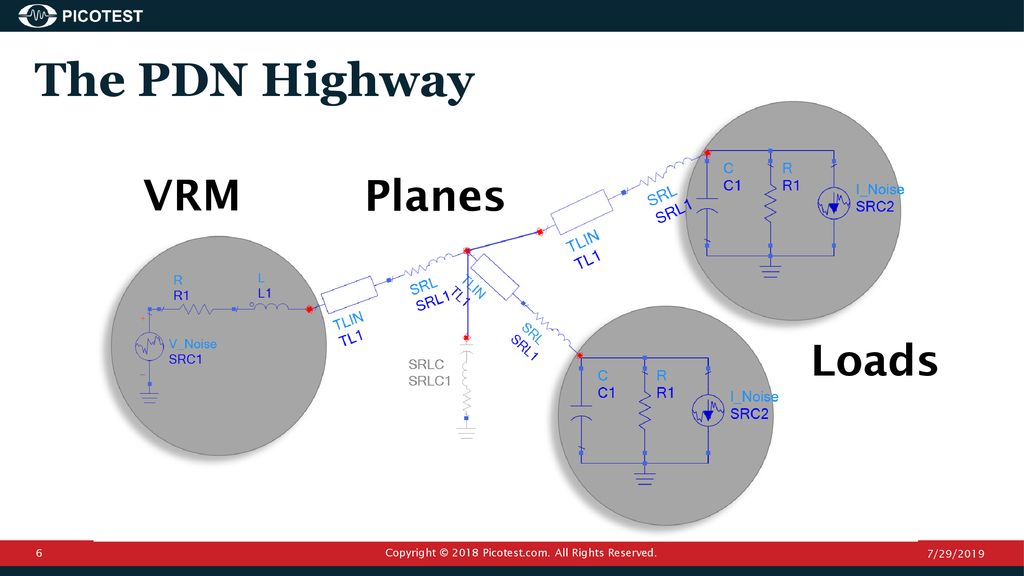

Okay, let's cut to the chase. You're here because you've stumbled upon "VRM in PDN" and probably scratched your head. No worries, you're not alone! VRM stands for Voltage Regulator Module. Now, PDN? That's Power Distribution Network. So, when we say VRM in PDN, we're essentially talking about the voltage regulator module's role within the system responsible for delivering power efficiently and reliably to the various components of your device. Think of it like this: the PDN is the highway system, and the VRM is the off-ramp directing power to specific buildings (components) along the way. A poorly managed off-ramp can cause traffic jams (inefficient power delivery), and nobody wants that!
Imagine your computer's processor needs a specific voltage — say, 1.2 volts — to function correctly. The power supply unit (PSU) likely provides a higher voltage, maybe 12 volts. The VRM steps down that higher voltage to the required 1.2 volts, ensuring the processor gets exactly what it needs without frying itself. It's a crucial piece of the puzzle, and without it, your fancy gadgets would be about as useful as a chocolate teapot.
The voltage regulator module isn't just a simple voltage reducer, it also acts as a stabilizer. This means it maintains a consistent voltage output despite fluctuations in the input voltage or changes in the load. Its like a skilled bartender who always pours the perfect measure, no matter how busy the bar gets. Without this stability, your device could experience performance issues or, in severe cases, permanent damage. So, give a little respect to the VRM — it's working hard to keep things running smoothly.
In essence, the VRM's main goal is to give each component the precise amount of electrical juice it needs, when it needs it, and in a stable, consistent manner. They are usually found near the computer processor, graphics cards, and RAM modules, ensuring those components get the most from the power they use. This ensures stable performance and prolonged component life.
